Doosan DH55 2401-9255 2401-9255A 2401-9255B Swing Motor For Excavator Spare Parts
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | DH55 | Part Number | 2401-9255 2401-9255A 2401-9255 |
|---|---|---|---|
| Part Name | Swing Motor | Appliion | Crawler Excavator |
| Brand | Doosan | Material | Steel |
| Quality | Original | Warranty | 6 Months-12months |
| Highlight | 2401-9255B swing motor,2401-9255A swing motor,2401-9255 swing motor |
||
Product Description
Doosan DH55 2401-9255 2401-9255A 2401-9255B swingn motor for excavator spare parts
Product Description
|
Appliion |
Excavator |
|
Part name |
Swing Motor |
|
Model |
DH55 |
| Part numbmber | 2401-9255 2401-9255A 2401-9255B |
|
MOQ |
1PC |
|
Warranty |
6 months |
|
Payment term |
T/T&Western Union &Paypal |
|
Delivery Time |
Within 5days after receiving the payment |
|
Packing |
Standard shipping package |
List of spare parts
| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| - | 2401-9255 | SWING MOTOR | 1 | ||
| - | 2401-9255A | SWING MOTOR | 1 | ||
| - | 2401-9255B | SWING MOTOR | 1 | ||
| 1 | MS50S201 | BODY, SWING MOTOR | 1 | ||
| 1 | JA0E1001 | BODY | 1 | ||
| 2 | OSAP1709 | SEAL, OIL D30XD50X11 | 1 | ||
| 3 | MS50S202 | BLOCK, CYLINDER | 1 | ||
| 4 | MS50D103 | SHAFT | 1 | ||
| 5 | TB30305C | BEARING, TAPER | 1 | ||
| 6 | BU302520 | BUSH D30XD20X201 | 1 | ||
| 7 | J43A102 | PLATE, SHOE | 1 | ||
| 8 | MS50D104 | SPRING | 9 | ||
| 9 | MS50D105 | PLATE, FRONT | 1 | ||
| 10 | J43A108 | PISTON & SHOE ASSY | 9 | ||
| 11 | MS50D106 | GUIDE, BALL | 1 | ||
| 12 | MS50S203 | COVER, REAR | 1 | ||
| 13 | J43A110 | PIN | 2 kg | 1 | |
| 14 | AS568-252 | O-RING | 1 | ||
| 15 | TB30202 | BEARING, TAPER | 1 | ||
| 16 | MS50D108 | PLATE, VALVE | 1 | ||
| 17 | MS50D109 | RELIEF VALVE ASS'Y | 2 | ||
| 18 | WBM1230 | BOLT, SOCKET M12X30 | 4 | ||
| 19 | WPT12 | PLUG | 1 | ||
| 20 | MS50D110 | PLUG | 1 | ||
| 21 | P0014 | O-RING | 1 | ||
| 22 | S343000-5 | SHIM D34XD30X0.5T | 1 | ||
| 23 | WPT14 | PLUG PT1/4 | 3 | ||
| 24 | BURP026 | RING, BACK UP P26 | 2 | ||
| 25 | P0026 | O-RING P26 | 2 | ||
| 26 | MS50S204 | PLATE, FRICTION | 1 | ||
| 27 | MS50S205 | PLATE, FRONT | 1 | ||
| 28 | MS50S206 | PISTON, PARKING | 1 kg | 1 | |
| 29 | AS568-254 | O-RING | 2 | ||
| 30 | MS50S207 | SPRING | 18 | ||
| 31 | MS50S208 | VALVE, TIME DELAY | 1 | ||
| 32 | WBM0675 | BOLT, WRENCH | 3 | ||
| 33 | MS50S209 | PLUG | 2 | ||
| 34 | P0011 | O-RING P11 | 2 | ||
| * | 2401-6250K | SEAL KIT, SWING MOTOR | 1 |
The excavator swing motor, as the core actuator of hydraulic systems, directly determines equipment performance through its technical specifications. Taking the mainstream swash plate axial piston motor as an example, its operating pressure range typically spans 25-35MPa with displacement specifications covering 80-500cc/r, capable of delivering up to 3000Nm torque. The integrated cross roller bearing design enables axial load capacity exceeding 50kN, while achieving stepless rotation speed regulation from 0-12rpm. Utilizing a 9-piston symmetrical configuration, volumetric efficiency reaches over 97%, complemented by dual-channel flushing valves maintaining oil temperature below 65℃. Latest models incorporate pressure compensators and LUDV control systems, enabling demand-based flow distribution with 18% energy consumption reduction.

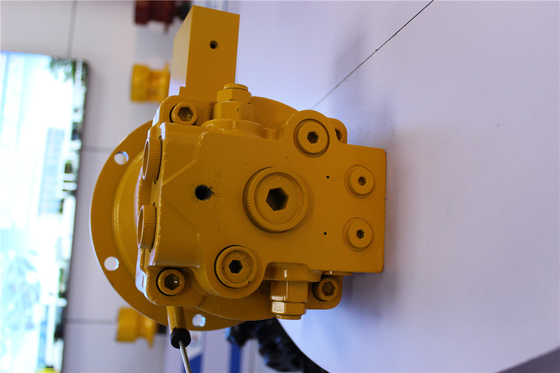

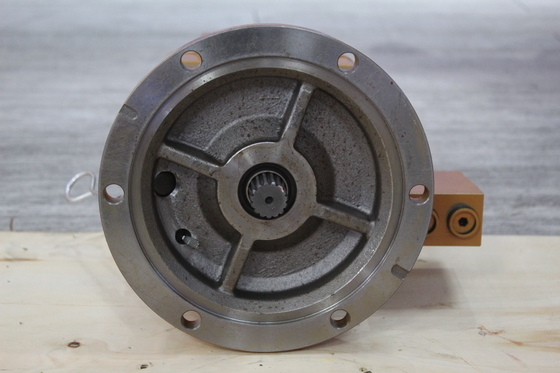

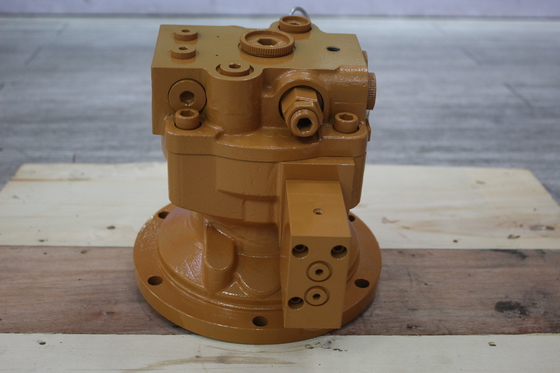

Part number pictures
FAQ
| Q1. What's your payment methods? A: Belparts accept payment methods of Bank transfer, Western Union, Money Gram, Credit Card,Paypal |
| Q2. How are you going to ship my order? A: Belparts will arrange the shipment by DHL, FedEx, UPS, TNT and EMS usually. |
| Q3. How long will you delivery my order to me? A: The normal delivery time to US is 3-5 days, while 3-7 days will be needed for other countries. EMS will take more days for delivery. |
| Q4. How can I trace my order? A: Once your order is shipped, including tracking number. |
| Q5. If I am not satisfied with your products, can I return goods? A: Please contact us before you return the defective products.The buyers will pay for the cost of return shipments, and we will responsible for sending the replaced or repaired items back to buyers. |
